MK Battery M24 SLD G — 12V 73.6Ah Gel Deep-Cycle Battery

The Group 24 gel battery. High capacity for large power chairs and scooters that need extended range. Available in standard post terminals or flat-top profile for chairs with battery box clearance constraints.

Specifications (Standard):

• Voltage: 12V
• Capacity: 73.6 Ah (20-hour rate) / 63.0 Ah (5-hour rate)
• Weight: 51.5 lbs (23 kg)

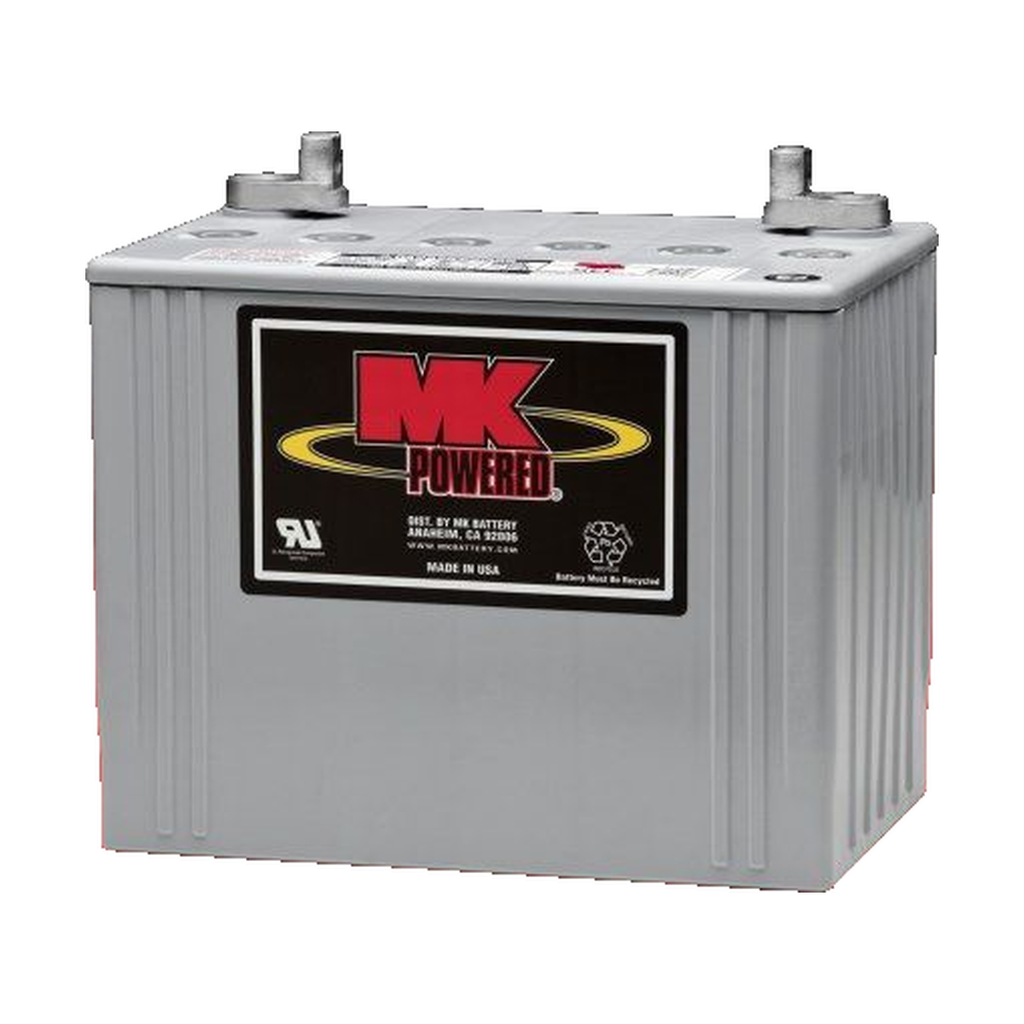

• Dimensions (standard): 10.20" L × 6.56" W × 9.27" H — Terminal G

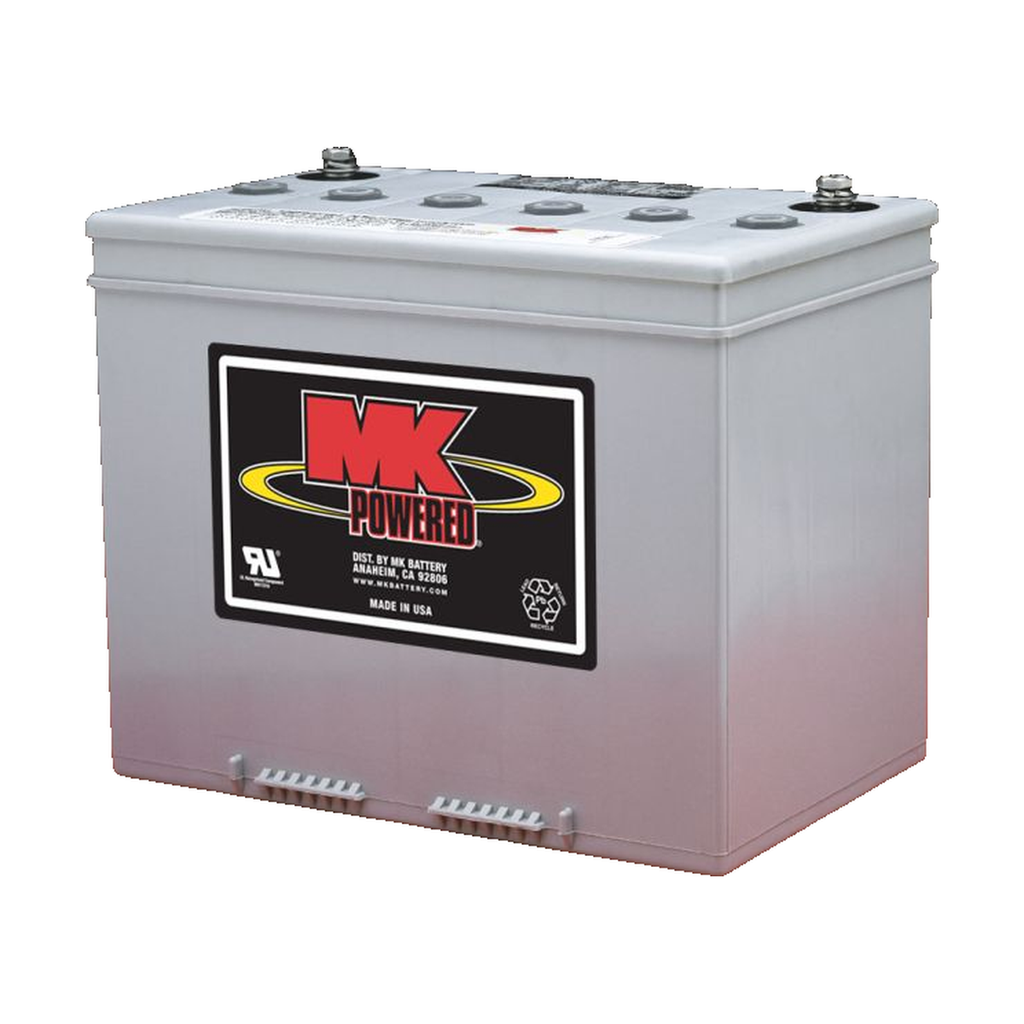

• Dimensions (flat top): 10.20" L × 6.80" W × 8.24" H — Terminal C
• Group: 24

Recommended charger: LS24/8A or M-D-EN0801

Common compatibility: Quickie/Sunrise QM-710/715/720, Permobil C400/C500/F5/M5 Corpus, Pride Jazzy Quantum 6000 series, Pride Wrangler, Drive Cobra/Osprey/Maverick, Pride Pursuit XL. The flat-top version is required for chairs with low-profile battery boxes — see chair model details in lookup file.

About MK Genuine Gel batteries:

• Sealed VRLA construction — no watering, no acid fumes, no spills
• Gelled electrolyte will not stratify — no equalization charging required
• Extended deep cycle ability — up to 1100 cycles for typical mobility use
• Less than 2% per month self-discharge in storage
• Non-spillable per DOT, ICAO, and IATA definitions — safe for air travel
• F.A.A., IATA, and UPS approved for shipping
• Built-in safety vent prevents over-pressurization

Plate alloy: Lead Calcium  |  Charge voltage: 2.30–2.43 vpc  |  Operating range: -76°F to 140°F

Supplier reference: MK Battery M24 SLD G / M24 SLD G FT
